Food Brewing
Air-Suspension Blowers Enhance Quality and Efficiency in Soy Sauce Fermentation
A traditional soy sauce brewing facility in East Asia, producing over 100 tons daily, faced operational challenges with its aeration system. Fermentation, a critical step where ”Aspergillus” or yeast cultures convert substrates, requires a consistent supply of clean, oil-free air to maintain dissolved oxygen levels and microbial activity. The plant’s old Roots blowers were oil-lubricated, noisy (above 90 dB), and consumed excessive energy, with a constant risk of lubricant contamination that could compromise food safety standards. To modernize production and adhere to strict HACCP and GMP requirements, the facility replaced its legacy blowers with an ”air-suspension centrifugal blower” system .
The air-suspension blower operates on air-foil bearings and a high-speed permanent magnet motor, delivering 100% oil-free, Class 0 certified compressed air . Unlike oil-flooded systems, there is no mechanical contact or lubricant in the compression chamber, eliminating any risk of oil or metallic particle carryover into the fermentation broth. The system integrates a Variable Frequency Drive (VFD), enabling real-time, stepless adjustment of aeration volume (0–100%) to match the precise oxygen demand of the *koji* or brine fermentation stages. This allows for precise recipe control—a critical factor in achieving consistent umami flavor profiles.

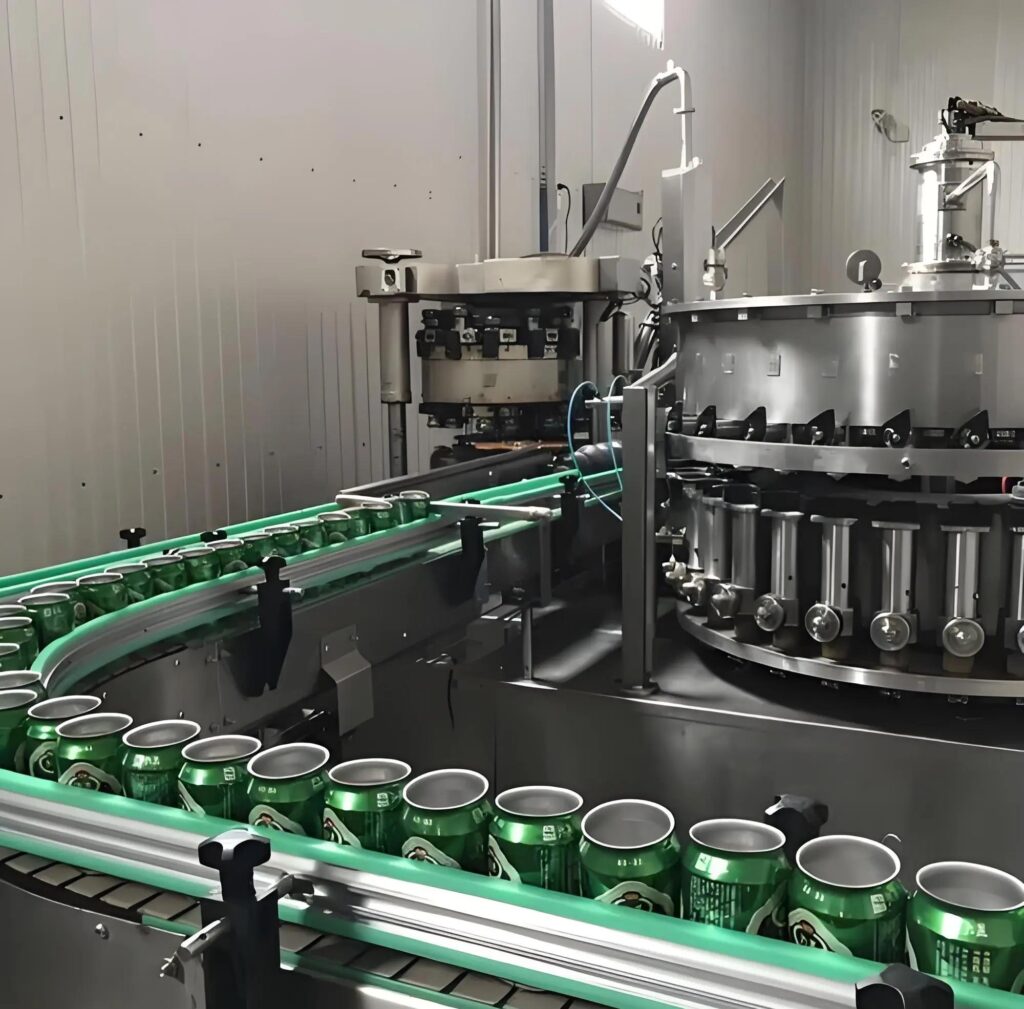

Fully automated carbonated beverage production line

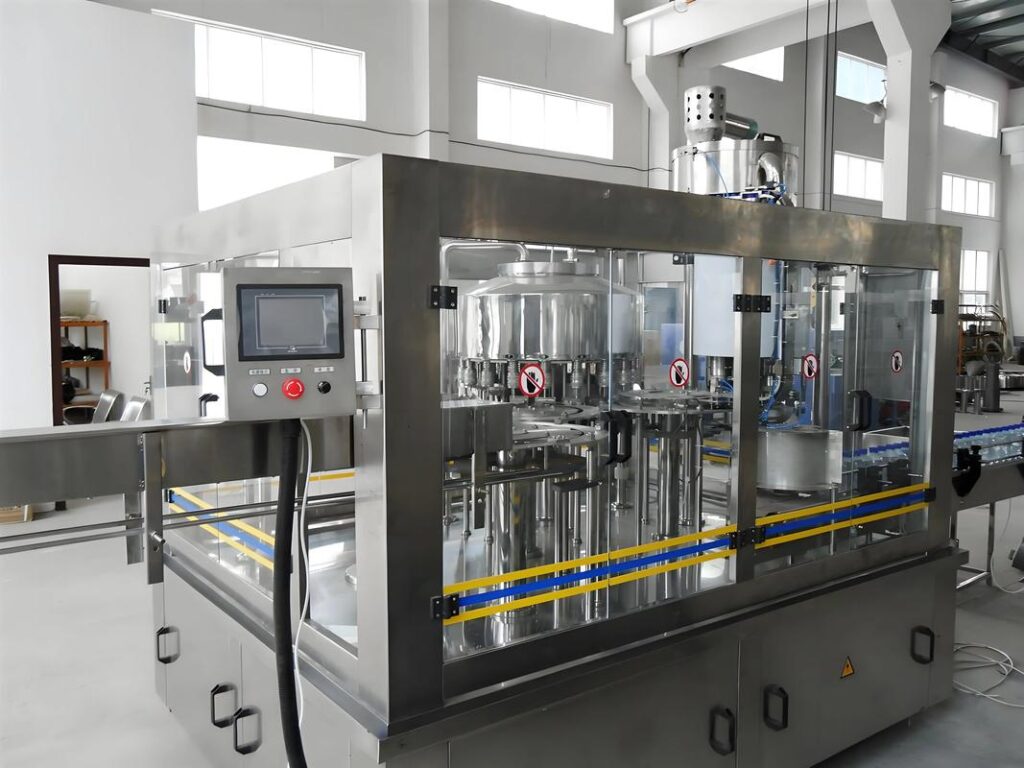

Honey bottling machine
Industry Focused Products!
Result
The upgrade delivered significant operational improvements:
Product Safety:
Total elimination of oil contamination risk ensured the fermented product met rigorous food-grade air quality standards (ISO 8573-1 Class 0), protecting brand integrity and consumer safety .
Process Stability:
The oil-free, low-vibration operation (noise reduced below 80 dB) improved the working environment and provided stable, uninterrupted aeration, preventing costly production downtime that can ruin entire fermentation batches .
Energy Efficiency:
With the VSD technology, the system adapted airflow to biological demand, achieving energy savings of ”30–40%” compared to the constant-speed Roots blowers, saving over 500,000 kWh annually .
Conclusion
Adopting air-suspension technology transformed the facility’s fermentation process. The case demonstrates that for food applications where purity and process consistency are paramount, air-suspension blowers are an essential investment—delivering superior hygiene, significant energy cost reductions, and enhanced process flexibility for high-quality brewing .
